About this item

• Electrical Wire Connectors: 2 Pin male and female connectors with high-precision copper plating process to improve conductivity, easy to install under soldering and crimping, reliable safe connection, no loose, and lightweight. They are perfect automotive replacement ignition plug connectors.
• Superior Material: Made of PA66 nylon and nickel plated copper, which has high chemical stability, electrical conductivity, waterproof, dustproof and safety.

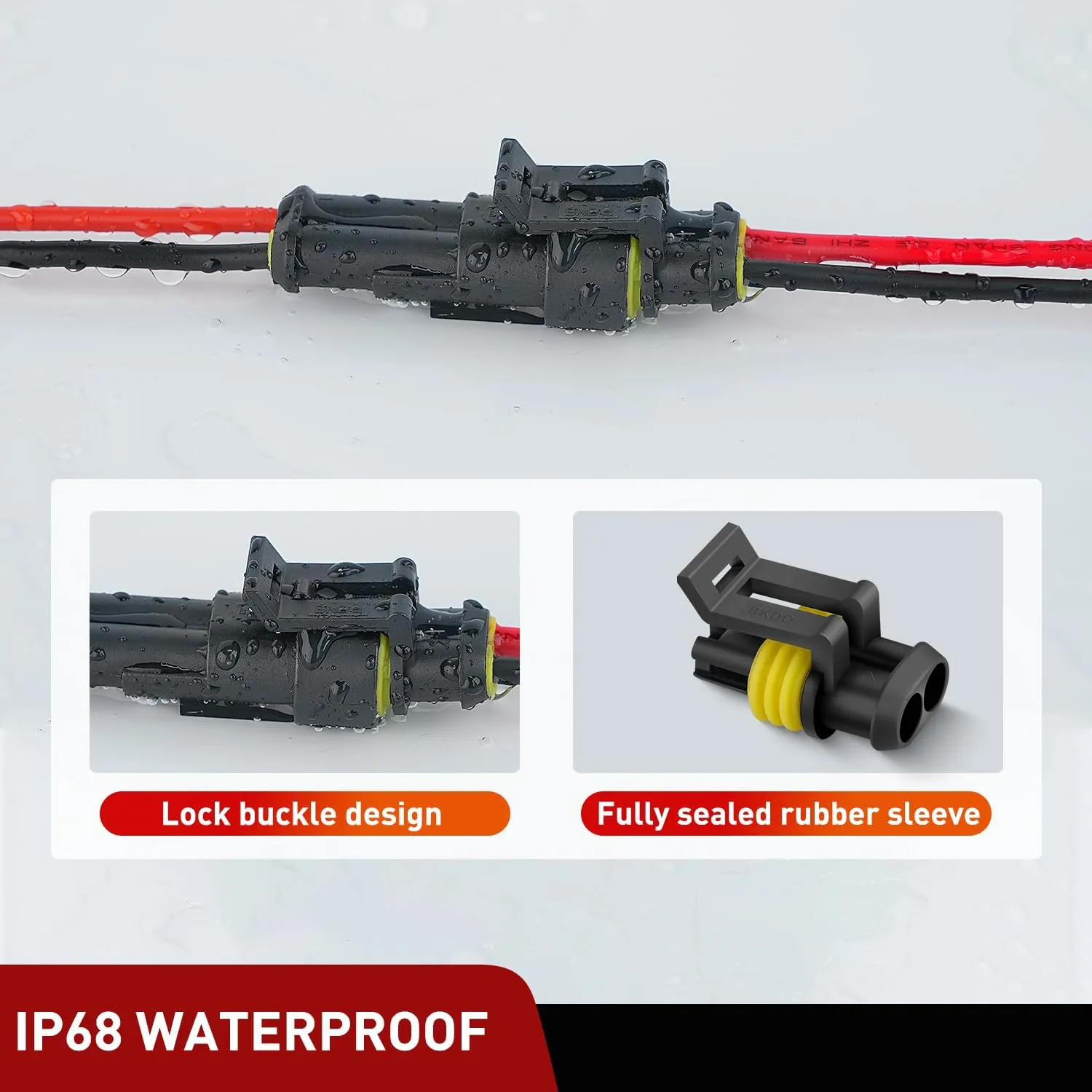

• Waterproof Connector: The connectors are applied with the rubber seal to make it better dustproof and waterproof. The buckle design ensures that the contact is accurately and completely inserted into the shell and prevents it from slipping out of the connector plug, can also be easily removed when needed.
• Application: Widely used for Motorcycles, Scooters, Cars, Trucks, Quad bikes, Trikes, Caravans, Marine Boats RVs etc. Great for connecting LED light bar, LED strips, LED wall-washers, LED underground light, LED belt light, curtain light, twinkle light and so on.

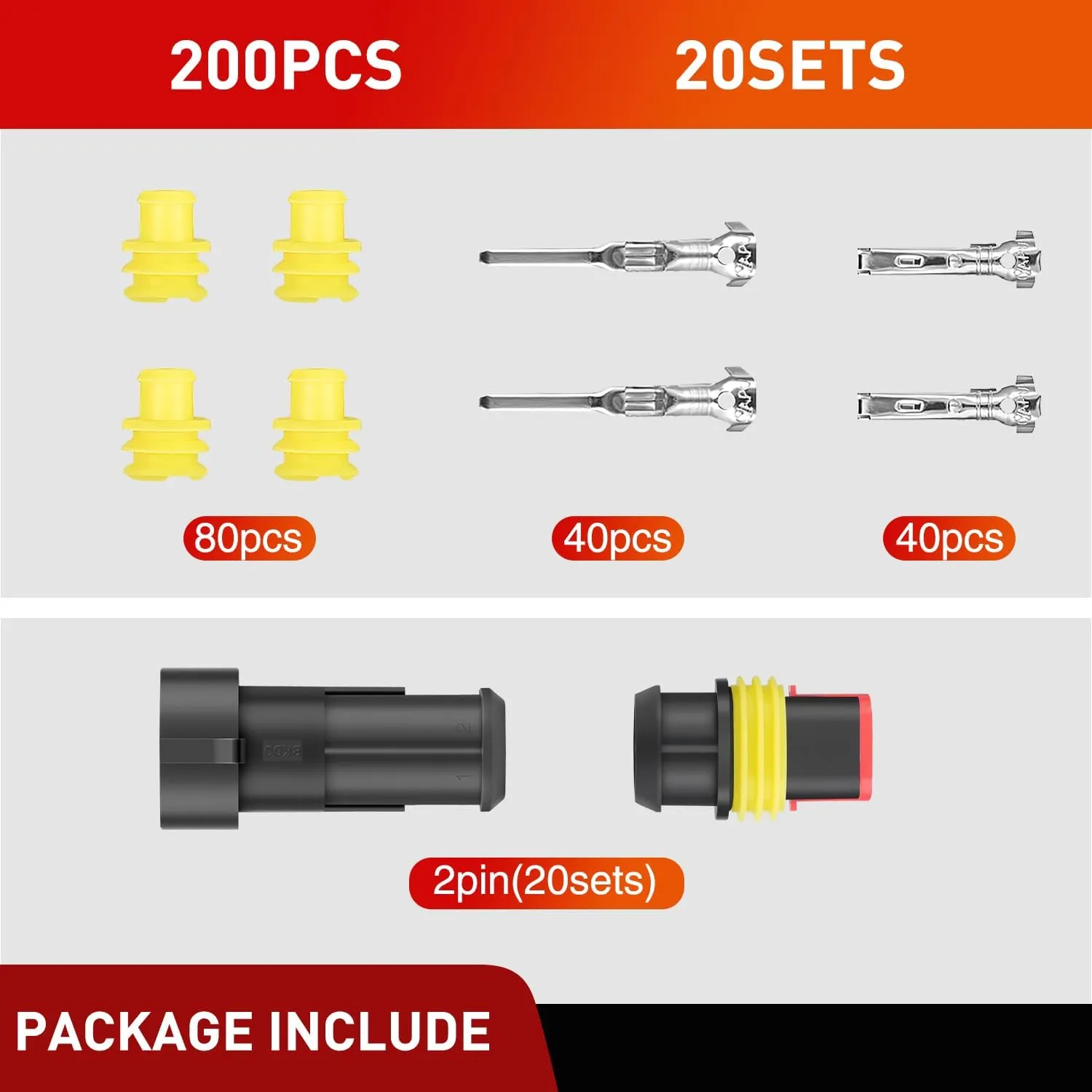

• Package Include: 20 x 2 Pin male connectors, 20 x 2 Pin female connectors, 40 x male terminals, 40 x female terminals, 80 x silicone rubber cable seals, 1x user manual, 2 years warranty by Nilight.

SpecificationInterface type: AC / DC

Contact material: Tin plated pure copper

Connector: PA66, Insulation material: PVC

Operating temperature : -10~ 85, Waterproof level: IP67

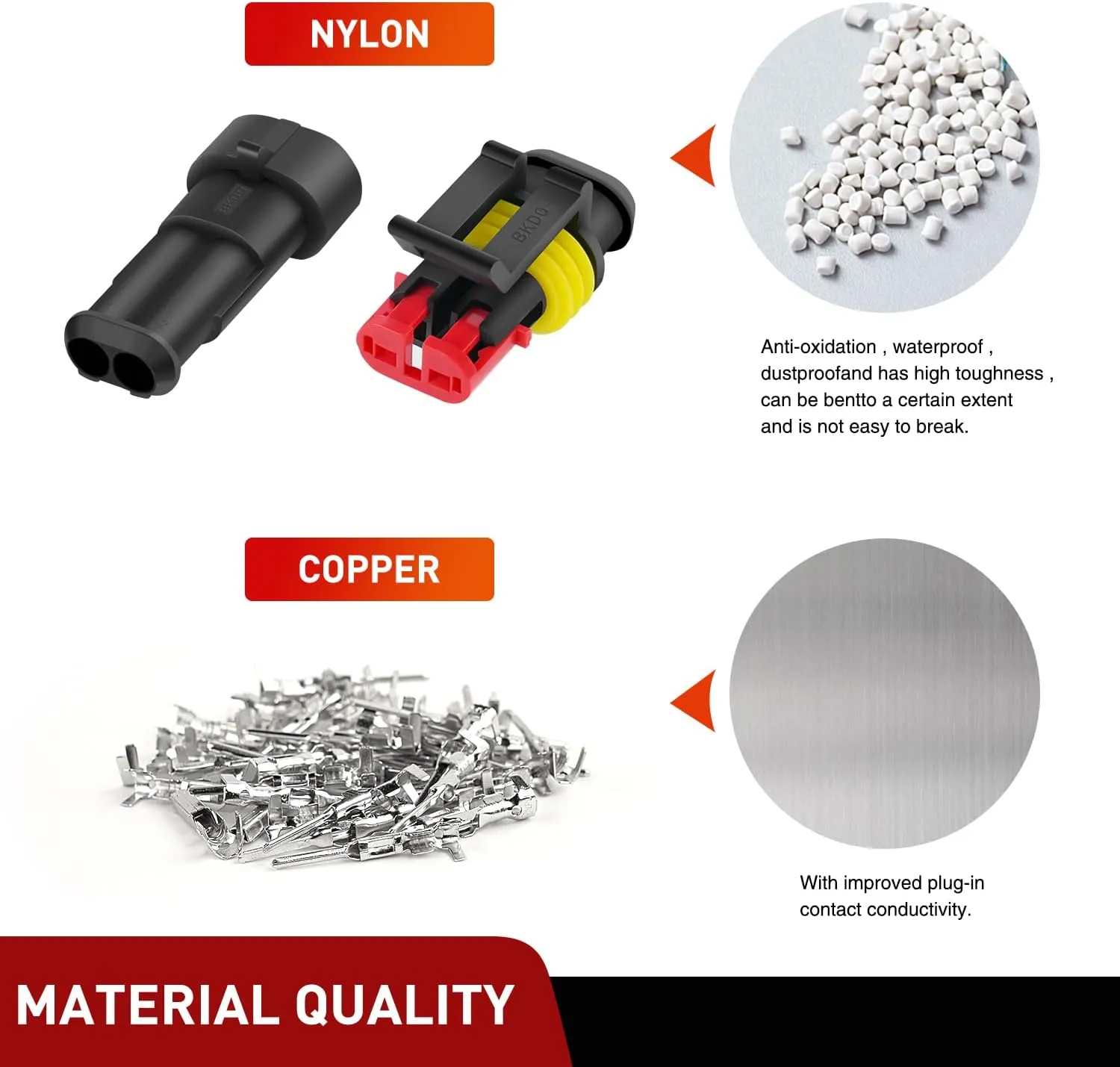

High Material

• Made of high-quality flame-retardant nylon PA66, which considerably enhances conductivity and assures the longevity and reliability of electrical components.
• Made of tinned-copper, which is anti-corrosion, anti-oxidation and high conductivity.
• High sensing performance, high temperature resistance

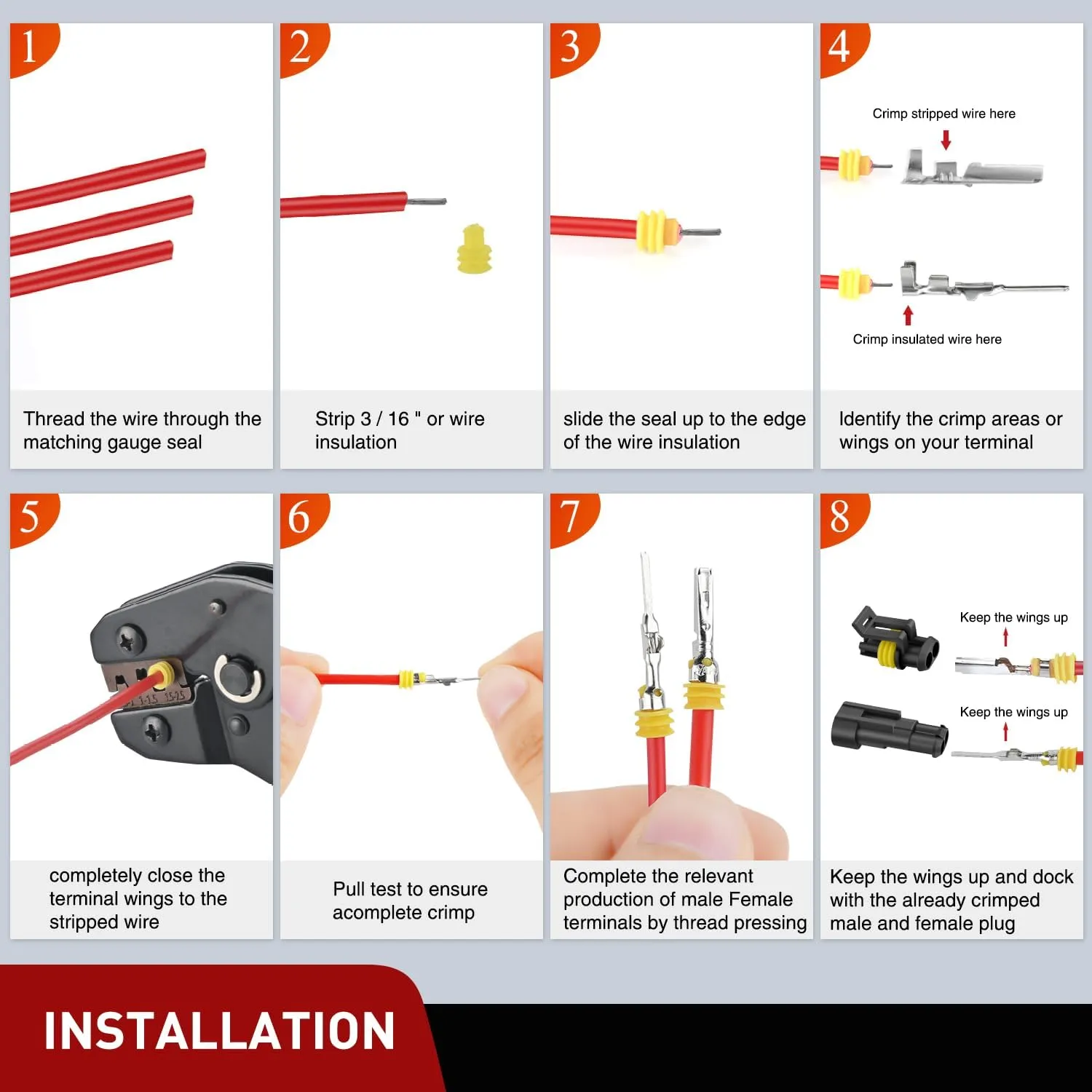

Installation

STEP 1

Prepare some 16AWG wires

STEP 2

Strip 3/16inch or wire insulation

STEP 3

Slide the seal up to the edge of the wire insulation, then plug the rubber seal through the wire.

STEP 4

ldentify the crimp areas or wings on your terminal.

Don't crimp the wings. Keep the wings up

STEP 5

Crimp the terminal with a crimping tool, completely close the terminal wings to the stripped wire

STEP 6

Pull test to ensure that the terminals are well crimped; if the terminals are not tightened in place, the wires will easily pull out of the connector.

STEP 7

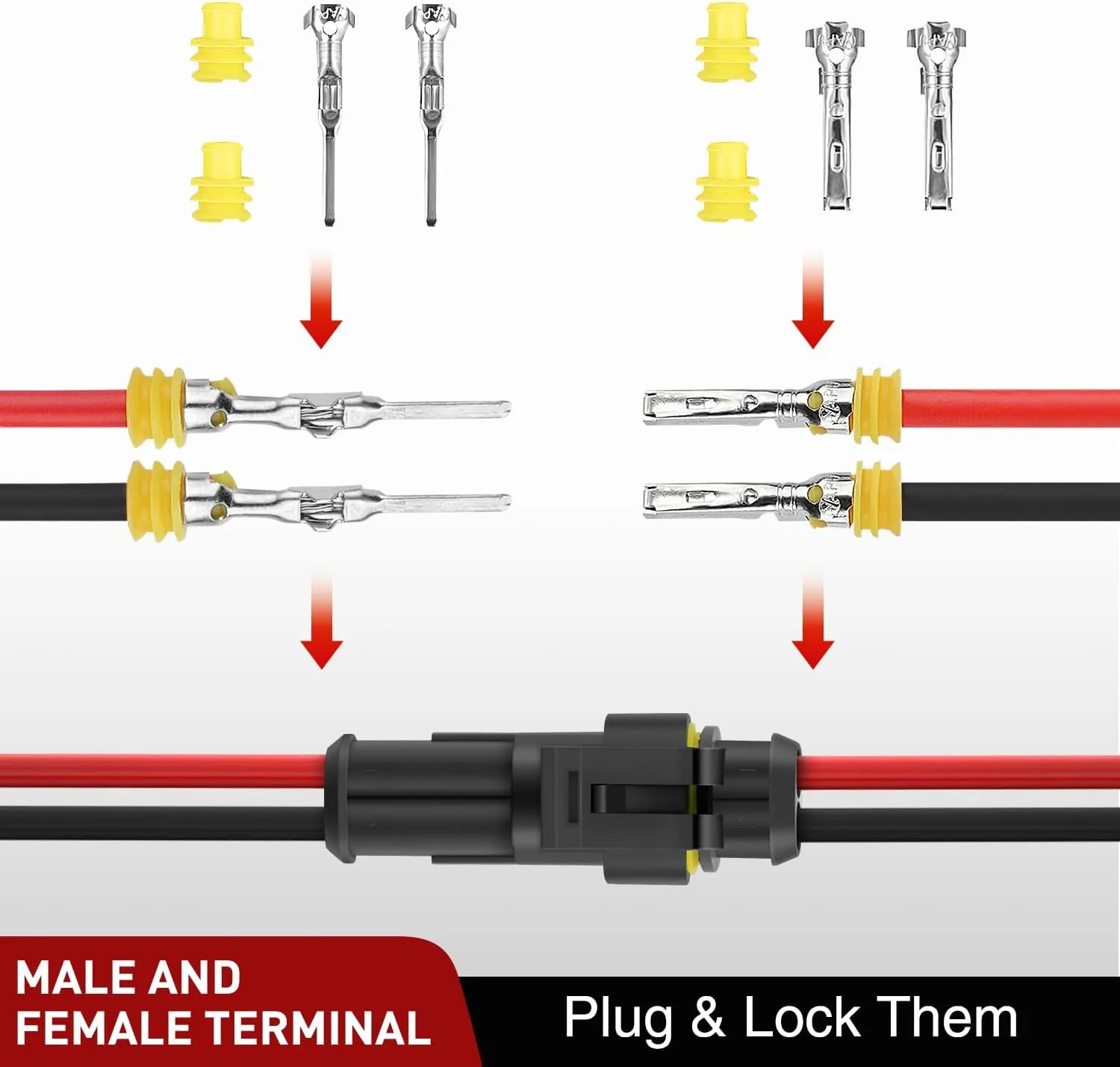

Complete the relevant production of male Female terminals by thread pressing

STEP 8

Insert the pre-crimped wire into the plug of the connector. Keep the wings up, docking the already crimped male and female plug.

Great for Motorcycles, Scooters, Cars, Trucks, Caravans, Marine Boats RVs etc.

Features of 2 Wire Connector:

1. Package includes 20 sets 2 way wire connector, different types of quick connect electrical parts to meet different usage needs.

2. Electrical cable connectors are made of high quality plastic material with good waterproof function safety.

3. Nilight connectors kits are good tools for auto repair and reset, very suitable for home DIY and auto repair shop use.

4. Male female wire connectors for cars are come with a compact and practical plastic box, convenient to carry and store in category, without taking up much storage space.
